1. Introduction: The European Foundry Grinding Crisis
We are the engineering and field application team at FUJI Grinding Wheel Mfg. Co., Ltd. Over the past three years, during our extensive tours of European casting machining plants, steel mills, and heavy metalworking enterprises, we have witnessed a growing operational crisis.
For decades, European foundries relied heavily on renowned German electric tool brands. However, the sudden discontinuation of critical FEIN high-frequency power tools, compounded by severely delayed and highly expensive spare parts supplies for Bosch HF tools, has left procurement managers scrambling. Plants are forced to operate aging, unrepairable machinery.
As a reliable Japanese standard abrasive manufacturer with 70 years of history, we recognized this massive gap. We understood that foundries desperately needed a viable, heavy-duty FEIN high frequency grinder replacement. This document outlines our engineered solution: a plug-and-play 300Hz high-frequency system designed to integrate seamlessly with your existing 3-phase 200V high-frequency power grid.
2. Industry Background & The Core Bottleneck
While robotics and CNC automation have revolutionized many sectors, heavy industrial casting (cast steel, grey cast iron, nodular cast iron) remains uniquely challenging. The unpredictable nature of casting flashing, complex internal cavities, thick risers, and heavy weld seams means that manual grinding is still an absolute necessity.
Robotic arms struggle to adapt dynamically to these irregular shapes without constant, expensive human reprogramming. Therefore, the burden falls on manual operators. But the tools they use are failing them.
Pain Point 1: Equipment Obsolescence
With legacy European brands exiting the HF space, foundries are out of options. Switching entirely to standard tools requires scrapping highly efficient, already-installed 300Hz electrical converter infrastructure.
Pain Point 2: Power Degradation
When operators press down hard to remove a stubborn casting riser, standard AC grinders drop in RPM drastically. This "bogging down" destroys cutting efficiency and rapidly burns out standard motor stators.
Pain Point 3: Severe Worker Fatigue
Legacy HF tools from competitors often weigh between 7kg to 8kg. Maneuvering this weight for an 8-hour shift leads to severe musculoskeletal issues and Hand-Arm Vibration Syndrome (HAVS).
3. Comprehensive Comparison: HF vs. Pneumatic vs. AC Grinders
To definitively prove the value of Total Cost of Ownership (TCO) optimization, our R&D facility conducted a rigorous, continuous 4-hour casting grinding test under strict factory conditions. We compared our flagship 300Hz HF grinder against industry-standard pneumatic and AC alternatives.

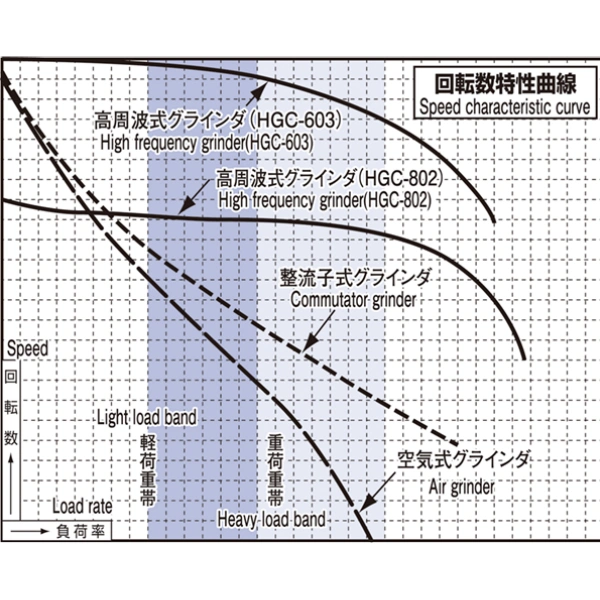

Fig 2: 3 Types of 180mm Grinder - Casting Grinding Tools Speed Dropping Comparison
The empirical data speaks for itself. Relying on compressed air or standard carbon-brush electrics in a heavy foundry setting is an economic drain.
| Key Metrics | FUJI HGC-3902 HF Grinder (300Hz) | Pneumatic Angle Grinder (Air) | Standard AC Angle Grinder |
|---|---|---|---|
| Material Removal Rate (4-Hour Test) | 2002g (Highest removal rate) | ~550g (Lowest removal rate) | 700g (Medium-low rate) |
| Output Power & Speed Under Load | Constant High Power (No speed drop) | Inconsistent (Drops significantly) | Poor (Power drops rapidly; frequent stops) |
| Power / Energy Cost | Low (Highly efficient 3-phase) | High (5x higher than electric due to compressor) | Low |
| Daily Maintenance & Durability | Extremely Low (Brushless, no carbon brushes) | Medium (Requires air treatment & lubrication) | Extremely High (Frequent carbon brush replacements) |
| Time & Labor Costs | Lowest (1 operator does the work of 4) | High (Longer time per workpiece) | Highest (Inefficient work pace) |
— Mr. Zhong, Chief Technical Engineer, FUJI Grinding Wheel
4. The FUJI 300Hz Technological Breakthrough
Why exactly did the HGC-3902 achieve a 2002g removal rate? The secret lies in the motor architecture. Our high-frequency power tools utilize a Brushless DC Motor (Squirrel-Cage Asynchronous Motor).
Unlike traditional AC single-phase angle grinders, which rely on carbon brushes and commutators to transfer electrical current to a spinning rotor, our squirrel-cage motors operate via electromagnetic induction powered by a 3-phase 300Hz supply.
- No Speed Drop: Because there is no physical friction from brushes, and the 300Hz frequency forces a hyper-fast rotational magnetic field, the grinder maintains an absolutely constant RPM even when the operator applies extreme downward force to bite into tough cast iron.
- No Carbon Brush Maintenance: Standard grinders burn through carbon brushes in weeks under heavy foundry loads. When a brush fails, the tool is dead. Our tools eliminate this failure point entirely.
- Incredible Power-to-Weight Ratio: By eliminating commutators and utilizing high-frequency alternating current, we can shrink the physical size of the motor while tripling its output.
Our current tool lineup is designed to plug directly into the existing European 300Hz power grids. You do not need to invest in new converter units; simply swap out your broken legacy tools for FUJI.
5. Selected Product Portfolio: High-Frequency Power Tools
Our engineers have tailored specific machines to tackle different aspects of casting finishing, from external surface grinding to delicate internal cavity deburring.
HGC-3902 | 7" Angle Grinder (300Hz)
- Specs: 3-Phase 300Hz | 2600W | 180mm Wheel | 4.8kg Net Weight
- Applications: Medium-to-heavy casting grinding, heavy-duty surface finishing.
- The Advantage: Delivers significantly higher power than the FEIN MSfo-852-1d (1900W) while maintaining a weight under 5kg. Zero speed drop ensures stable, aggressive grinding.
HIC-3802 | Straight Grinder (300Hz)
- Specs: 3-Phase 300Hz | 1600W | 6/8mm Mounted Wheels
- Applications: Narrow casting cavities, pipe inner walls, dead corners of weld seams.
- The Advantage: Far more powerful than legacy straight grinders that typically sit below 1000W. Stalls not, even clearing internal slag rapidly.
Lighter Alternatives & Ergonomic Innovations
We also offer solutions for medium-duty tasks. The HIC-250Ⅱ Light-Duty Die Grinder (250Hz) weighs only 2.2kg (700W) and is exceptional for precise finishing.
Additionally, our newly developed HIC-604A Extended Straight Grinder (5-inch) features an 8cm long neck and a specialized anti-vibration handle. Weighing 4.7kg at 950W, it acts as another safeguard against HAVS.
 FUJI Kosoku High-Frequency Grinders Product Portfolio for Foundry & Casting |
||||
| Product Category |
Model | Technical Specifications |
Target Applications |
Key Advantages & Notes |
|---|---|---|---|---|
| 7" High-Frequency Angle Grinder (300Hz) | HGC-3902 | • 3-Phase 300Hz • Rated Power: 2600W • Wheel Size: 180mm (7") • Net Weight: 4.8kg • Brushless Squirrel-Cage Motor |
• Medium-to-heavy casting grinding • Casting surface heavy duty grinding • Stable speed under load |
• Higher power than FEIN MSfo-852-1d (1900W) • No speed drop under heavy load • Compact, high efficiency, long life, low maintenance (no carbon brushes) • 4.8kg, user friendly, reduces worker fatigue • Excellent power-to-weight ratio; prevents HAVS |
| High-Frequency Straight Grinder (300Hz) | HIC-3802 | • 3-Phase 300Hz • Rated Power: 1600W • Brushless Motor • Mount: 6/8mm mounted wheels |
• Narrow casting cavities • Pipe inner walls • Weld seam dead corners |
• Far more powerful than FEIN's <1000W straight grinders • Highly efficient grinding with diamond mounted wheels |
| Light-Duty High-Frequency Die Grinder (250Hz) | HIC-250Ⅱ | • 250Hz (Japanese Standard) • Rated Power: 700W • Net Weight: <2.2kg • Mount: 6mm mounted wheels |
• Narrow casting cavities • Pipe inner walls • Weld seam dead corners |
• Ultra-lightweight and worker-friendly • Optimal at 15,000 RPM (with 250Hz supply) • *Note: Can theoretically run on 300Hz (18k RPM) but not recommended for long-term use* |
| 5" Long-Neck High-Frequency Straight Grinder (250Hz) | HIC-604A | • Rated Power: 950W • Net Weight: 4.7kg • 8cm Long Neck • Wheel Size: 5" flat wheel |
• Deep internal casting cavities • Medium grinding operations |
• Excellent power-to-weight ratio reduces worker fatigue • Anti-vibration handle prevents HAVS (White Finger Disease) |
| 5" High-Frequency Angle Grinder (250Hz) | HGC-300 | • 250Hz (Japanese Standard) • Net Weight: <3kg • Brushless Squirrel-Cage Motor |
• Light-to-medium metal surface grinding | • Lightweight and highly portable • Zero speed drop under load |
| 9" Ultra-Heavy-Duty High-Frequency Angle Grinder (300Hz - Upcoming 2027) |
HGC-xxxx | • 230mm (9") • Target Power: To benchmark 3700W |
• Ultra-heavy industrial grinding • Grinding thick reinforcing ribs • Direct sprue cutting |
• Specifically benchmarking the 3700W FEIN Msfo870-1c • Tailored for EU/US heavy foundry markets |
⚠️ DANGER: Cross-Frequency Usage Warning
While a 250Hz straight grinder using small mounted points can theoretically be plugged into a 300Hz grid (resulting in an RPM jump to 18,000), you must NEVER connect a 250Hz angle grinder or a straight grinder equipped with a 125mm flat wheel to a 300Hz power supply. The resulting 30% increase in rotational speed drastically exceeds the maximum safe RPM rating of the abrasive wheels, leading to catastrophic wheel shatter and severe operator injury.
Note on Ultra-Heavy Grinding: We recognize that some European mega-foundries rely on massive 9-inch (230mm) 3700W models. To meet this demand, FUJI is currently developing a specialized 230mm / 9-inch Japanese standard high-frequency grinder, anticipated for release in 2027.
6. Perfect Synergy: Matched Abrasives & Safety Standards
At FUJI, we are unique. We are the only company in Japan that has spent 70 years manufacturing both power tools and the grinding wheels they drive. Industrial metalworking consumables are half the equation.
If you put a cheap, poorly balanced wheel on a 2600W high-frequency grinder, the machine will vibrate violently, destroying the motor bearings and exhausting the operator. By matching FUJI tools with FUJI JIS-standard heavy-duty resin-bonded abrasives, you achieve "Perfect Synergy."
| Model / Type | Technical Specifications | Target Applications | Key Advantages |
|---|---|---|---|
| Super F2 (180mm) Economic Grinding Wheel |
180×7mm Premium Alumina 24S grain |
General & economic grinding for steel | Unique hot-pressing process. Aggressive rate with high anti-cracking margin. Highly affordable. |
| Super Z (180mm) High-Efficiency Grinding |
180×6mm Zirconia Alumina + Silicon Carbide |
Gray cast iron, alloy steel castings | Premium abrasive blend designed to bite into the toughest metals at high speeds. |
| Super Raicho Gold Sturdy Cutting Wheel |
180×2.6mm Double-Reinforced Fiberglass |
Heavy industrial cutting (risers, gates) | 30% longer life. Built specifically for lateral stability during deep cuts. |
⚠️ Application Rule: Never Mix Grinding and Cutting
Using a standard 6-8mm grinding wheel to slice off casting risers is highly dangerous. Do not do this. Grinding wheels are designed for surface friction, not deep lateral cutting. Using them to cut creates extreme thermal buildup, burning out your high-frequency motor, or creates severe side-load stress that can shatter the wheel. Always stop, and switch to a dedicated thin cutting wheel like the Super Raicho (2.6mm) for cutting tasks.
7. The FUJI & KOSOKU Heritage: 70 Years of Trust
Trust in industrial procurement is built on longevity and reliability. KOSOKU famously manufactured Japan's very first angle grinder in 1955. They became legends in the Japanese heavy-industry sector for precision engineering, high rotational speeds, and indestructible motor durability.
In 2010, KOSOKU was acquired by FUJI Grinding Wheel. While the Kosoku name remains an independent mark of excellence, 100% of our high-frequency machinery and abrasive wheels are manufactured in Japan, guaranteeing rigorous quality control.
Global Support & European Expansion:
To serve our European client base transitioning away from legacy brands, FUJI is officially establishing a dedicated sales, testing, and service company in Hungary in 2026. This hub will stock critical inventory—including spare rotors, stators, switches, and anti-vibration handles—ensuring minimal downtime for EU-based foundries.
8. Frequently Asked Questions (FAQ)
Q: How does FUJI's quality compare to FEIN?
A: Fein is a world-renowned power tool brand. While FUJI Kosoku has historically focused on the Japanese domestic market, our tools are 100% Made in Japan and adhere strictly to JIS standards. We engineer reliable, heavy-duty replacements that match legacy European models.
Q: Are your grinders fully enclosed? What is the maintenance routine?
A: Our current models use a semi-enclosed structure, critical for keeping the machine lightweight (under 5kg) while providing massive airflow to prevent rapid heat accumulation. Because foundry dust is highly abrasive, daily maintenance is required. Operators must blow out the rear ventilation slots at the end of every shift.
Q: Do you offer trial units for testing?
A: Yes. If located in Europe, contact our upcoming Hungary branch to arrange prototype trial machine delivery. Global partner (pio-ship) coordinates testing in other regions.
Q: What certifications do the tools carry?
A: Tools carry JIS standard and CB Certificate. CE certification is underway for global expansion. CSA/UL certificate will be provided upon request for volume order.
Q: Is there a defined warranty lifespan?
A: Unlike consumer DIY tools, industrial casting grinders are subjected to extreme abuse. Lifespan depends entirely on the operating environment (dust levels) and maintenance routines. If prematural failure occurs, technical support team will resolve it.
